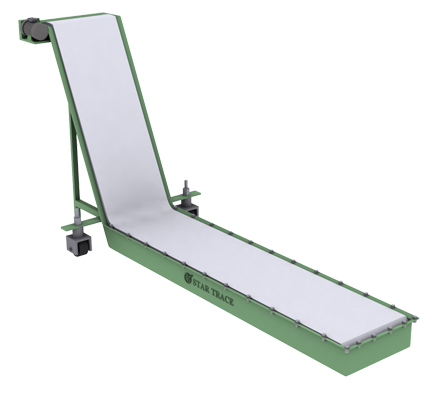

CHIP CONVEYORS

It has been specially designed keeping in mind the hazards that are normally encountered with conventional chips and swaft conveyors. The hinged steel belt is pressed ;in extra heavy duty sheet and perfect guiding of rollers ensures minimum friction and noise free operation: The body compact in size and occupies small space but due to extra chip space can handle large volume of chips. The continuous operation ensures least machine down time and minimum labour.

CNC turning centers, CNC machining centers, transferline, multispindle atuomats, SPM's, Heat treatment furnaces and press shops.

Fine, Light and sharp chips generated from gear shaves, Gear Hobbers, Spline cutting machines, SPM's, Deep Hole drilling machines, Broaching machines, Press shops and Heat treatment shops. Coming with large amount of coolant tend to escape with the coolant and cause damage to the pump and effects surface finish. Plain sheet magnetic conveyors help attract ferrous chips from coolant and separates coolant from chips. Thus the coolant is free from chips and the conveyor acts as Magnetic filter for the coolant.

The moving permanent magnets mounted on endless chain underneath the stationery stainless steel sheet attracts ferrous chips and slide them on plate to the discharge end. The coolant separated from chips flows to the coolant tank through an over flow so that even floating chips get attracted by moving magnets and get conveyed.

Magnetic Plain sheet type conveyors being sleek in construction can be introduced into small cross sectional openings in machine tools. Since Conveyors are custom built, different configuration and profiles can be made to suit specific applications.
